As I’ve mentioned in other posts I’ve been making some sash windows over the last few months and the time has come to start hanging the sashes which requires sash weights. Due to a design time miscalculation of the weights of the windows I only bought about half the sash weights that I needed – I counted the number of complete windows I was making not the number of sashes 🙁

I managed to stretch the I had lead out for all but the final window for which I had none left. I looked up the price of the weights I would need, just under 12kg worth, and it came to about £40 with shipping. By a happy coincidence though we’ve recently had an extension demolished and I’ve salvaged the old lead flashing. Rather than take the flashing to a scrap dealer who’ll give me probably pennies a kilo I decided to make my own upcycled sash weights.

Ideally I’d melt the lead down and cast my own weights but with the building work still going on I don’t have anywhere to work outside so instead I’ll shape the weights cold.

Start by laying your scrap lead out and hammering it roughly flat.

recycled-sash-weights-00001

Lay out a piece of lead on the bench and hammer it flat again if needed. I worked on a few different lengths of scrap but I found this piece which is about 800mm long easiest to work with.

I’m aiming to make 45mm square weights so I start by marking in from one end and then scoring a line to about half the thickness of the sheet.

I marked 45mm in from the end of the sheet but I found that my weights were a little oversized due to inaccuracies so I’d recommend marking more like 40mm in. Now score lines twice the original distance along the length of the piece of lead.

recycled-sash-weights-00002

recycled-sash-weights-00003

recycled-sash-weights-00004

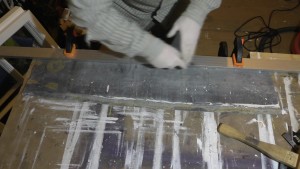

Put your best long edge at the front of the bench and measure up 45mm before clamping a long straight edge along the marks. Don’t worry too much if the lead has a bit of a bend along its length it’s easy to hammer back into shape later.

A few passes with the knife should be enough to cut deeply into the lead so remove the clamps and straight edge and turn the lead over.

Bend the sash weights lead at the score line taking some care not to distort it too much. Work it backwards and forwards until it breaks, you should find that it’ll break cleanly after a couple of repetitions.

recycled-sash-weights-00005

recycled-sash-weights-00006

recycled-sash-weights-00007

recycled-sash-weights-00008

recycled-sash-weights-00009

recycled-sash-weights-00010

Stack all your lead strips up and, you guessed it, hammer them flat. I found that I got much better results when I hammered a pile of lead flat rather than just a single thickness.

recycled-sash-weights-00011

Now select a single strip of lead and bend it at the first score mark. Flip it over and score the back where the first part ends. Flip it over and bend it at the second score mark. Repeat the process until the whole piece is folded up.

recycled-sash-weights-00012

recycled-sash-weights-00013

recycled-sash-weights-00014

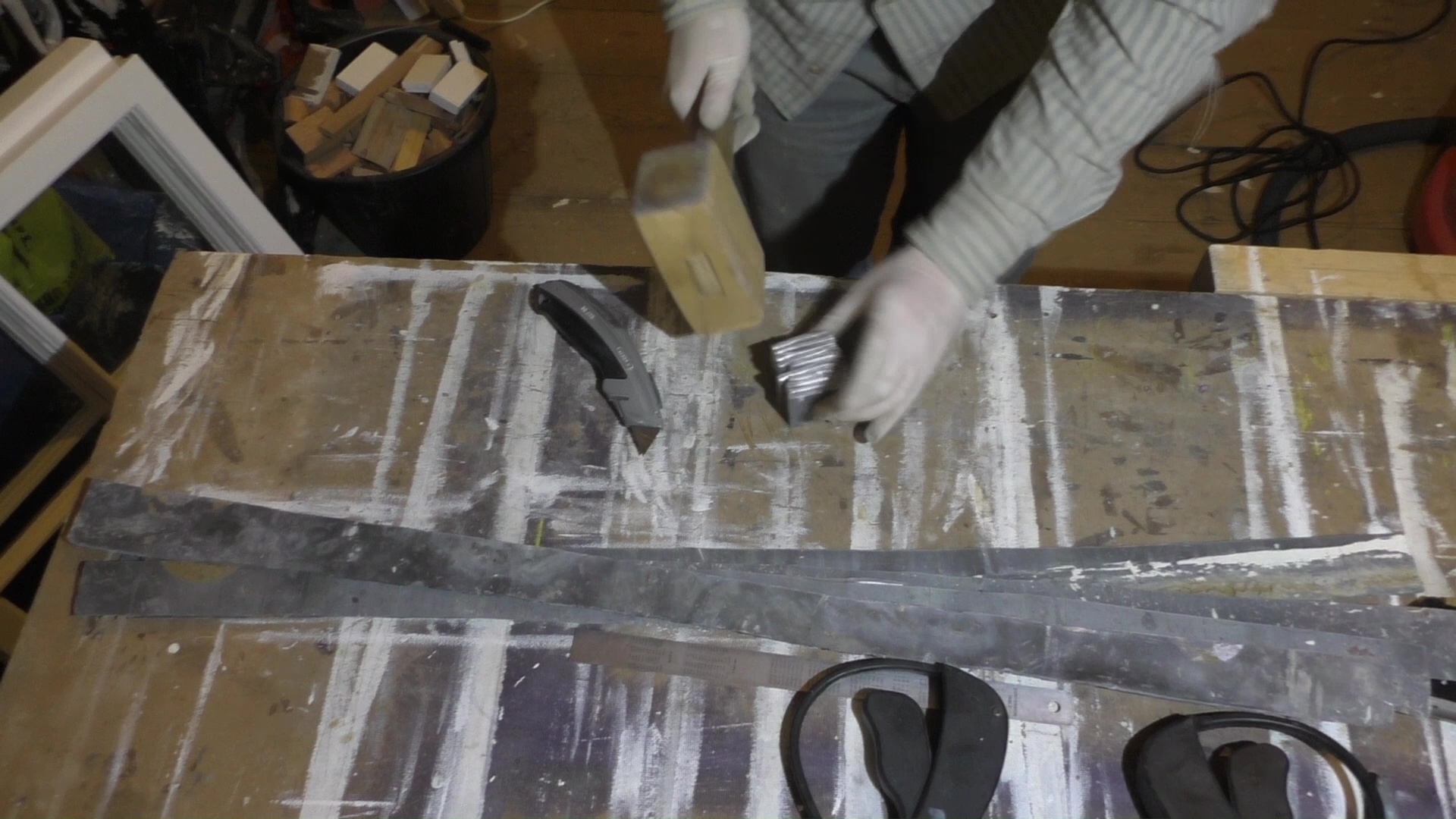

You should now have a stack of lead that looks quite a bit like a sash weight. Use your flat faced mallet to give it a good hammering on all faces. Hammering on the side faces will remove any bend that the lead sheet may have had. Hammering on the top face will compress the stack making it more like a single block.

If you have any problems with your folding that have caused sheets to stick out they can usually be hammered back in with an everyday metal faced hammer. I hit this stack so hard I broke the top sheet loose, try to avoid this but don’t worry if it happens it doesn’t make any difference to the weight.

recycled-sash-weights-00015

recycled-sash-weights-00016

Here you can see the various different stacks I made up. This probably took me about an hour but now that I know what I’m doing I could easily do it in half that time and get a better finish. I didn’t take much care to clean rubbish off the lead before I started and with hindsight perhaps I should have.

recycled-sash-weights-00017

Sash weights have a hole that runs through the middle of the weight. It’s typically around 12mm but I’m going to drill mine at 9mm as that’s enough for the cord I’m using. While you can drill the blocks as they are I found it was much easier if I wrapped some tape around them first. The problem is that lead is quite sticky and the block tended to come unfolded as the drill got deeper if I didn’t tape it.

recycled-sash-weights-00018

recycled-sash-weights-00019

I drilled the blocks at the drill press using a vice to hold the work piece. Keep a tight hold of the vice as the lead will stick to the bit. I found it was best to take little pecks at the lead rather than trying to just power through. On the up side the swarf that comes off isn’t sharp.

recycled-sash-weights-00020

Drilling the rope hole causes a huge burr to on the top face but being lead it’s easy to remove with either a knife or in my case a countersink. Once cleaned up I threaded the weights onto a piece of sash cord and ended up with the world heaviest necklace.

recycled-sash-weights-00021

recycled-sash-weights-00022
