About two years ago I found myself in need of a router table but without the inclination to buy one of the commercially made variety. I set myself the task of trying to make an almost free router table from the items I had lying around the house. This article shows the end result of my constructive labours.

Introduction to the Almost Free Router Table

When I built this router table I wasn’t taking photos as, to be honest, I didn’t think it would turn out as well as it did but after serving me well for two whole years I think it now deserves to be shown off to the world. I often price up the I do work against what I’d pay for someone to do it professionally and so far I reckon this almost free router table has saved me around £2000!

Over All Construction

The base is made from a free standing wardrobe that one of our neighbours gave us. In it’s day it was probably a very nice wardrobe but it’s day had long since passed and it was time it moved on. The wardrobe came as two pieces and I used only the base. The base, essentially, was one large draw.

almost-free-router-table-00001

For the top of the router table I found I used a cabinet door (white) from a cupboard that was in the house when I bought it and the side of a desk (black) that I had when I was a kid. The cabinet door is 18mm ply with a high pressure laminate of some kind, perhaps melamine.

I briefly considered leaving the draw intact and using it as a chip and dust catcher but I quickly dismissed this as a stupid idea since the router would suck up all the dust. Instead I took the sides, back and bottom off the draw and used the hinges from the wardrobe door to make it a drop down draw-door. It’s important that the seal around the draw-door is reasonably good and so I fitted some small strips of wood along the top. Don’t go crazy with the sealing it’s not that important.

I also fitted a baffle in the middle of the void. This reduces the amount of volume that the extractor has to work with and means that I can use the other side of the router table for storage.

almost-free-router-table-00002

Power

Looking at the side of the almost free router table you see the simple solution for getting power to the router. I simply drilled a hole in the side of the cupboard and fitted a hinged flap. The bottom of the flap has a small notch to allow the power cable to pass through. When under suction this flap is pulled so tight to the side it’s impossible to open by hand so the seal is good.

almost-free-router-table-00003

almost-free-router-table-00004

almost-free-router-table-00005

Ideally of course you’d have a zero volt release on the power but as my old dad always said: safety last.

Inside and Dust Extraction

Inside the router table you can see the bottom of the router lift and the piles of dust that build up. This is the total build up after a mammoth day of routing so it’s really not a problem but I’d still look at fixing it if I was keeping this table long term. I’ve sealed all the corners with silicon to help prevent leaks although I don’t think that was really necessary.

almost-free-router-table-00006

At the back of the cabinet you can see the dust extraction port, this is just a standard 100mm drainage connector. The four bolts hold on a strengthening plate which I’ll show again later.

almost-free-router-table-00007

almost-free-router-table-00008

At the back of the almost free router table you can see the other side of the dust extraction set up. I bolted a 12mm ply plate to the back of the cupboard in order to strengthen it. The drain fitting is just a tight fit in the hole and held in place with more silicon sealant. The flexible hose is simply pushed into the drain connector with a piece of rag looped around it. The seal isn’t perfect but it’s good enough for me.

almost-free-router-table-00009

Fence

And so on to the fence. The fence is the best bit of this table and the one part that may yet make it into my next router table.

almost-free-router-table-00010

The front section of the fence is made from a piece of solid oak laminate flooring. There is a hard smooth coating on it, probably polyurethane, which makes it easy to slide work pieces along. Being made up from multiple pieces there’s little danger of warping and it’s perfectly smooth. I bought a pack of this flooring many years ago and I’ve found it to be incredibly useful around the workshop.

The back half of the fence is made from scraps of MDF I had from other projects. Using the mitre saw I cut a number of accurate right angled triangles and used them to join two two straight sections together with glue and screws. I then cut slots in the front piece of MDF to accept bolts from the front fence.

almost-free-router-table-00011

At this point I realized I wanted some through the fence dust extraction so I cut some more right angle blocks and fitted a cover over them. I drilled a hole in the cover and inserted a piece of 50mm drain pipe and used silicon sealant to hold it in place. The cover of is removable for maintenance but to be honest it’s never needed it so it could be glued down.

almost-free-router-table-00012

There are a few ways of making an adjustable router fence but in my opinion the best is the pivoting method. At one end of the table I drilled a series of 8mm holes 50mm apart. I then drilled two 8mm holes 40mm apart at the corresponding end of the fence. Through one of the fence holes I in pushed an 8mm drill bit. This acts as a pivot point for the fence.

almost-free-router-table-00013

almost-free-router-table-00014

The white board of the router table overhangs the end of the cabinet about 30mm which is enough to allow me to clamp down the other end of the fence. The nice thing about this fence adjustment method is that you can get a very accurate adjustment very easily. Your accuracy in multiplied by the ratio of the distance from the pivot to the cutter and the pivot to the adjustment point.

almost-free-router-table-00015

I would be remiss if I didn’t mention the one downside of the pivoting fence method – some operations that require the use of a t-track running parallel to the fence are difficult to perform. Having said that they can all be perform but in slightly different ways. In my case I’ve built a routing sled which I run along the fence. Since shooting this video I’ve actually fitted a t-track but I only use it for clamping on feather boards.

As seen on the back of the fence the front part of the fence is held on by bolts that fit into slots to allow the fence to open.

almost-free-router-table-00016

Fence Drawings

The base of the router table is, I think, simple enough that it doesn’t need any drawings but the fence is a little more complex to I’ve drawn it up. In the spirit of this build I’ve left things a little vague as the idea is to build it out of what you’ve got on hand. The first image shows an exploded drawing of the fence showing how the dust extraction is put together. The next gives some approximate measurements for a good sized fence.

Almost Free Router Table - Fence 4

Almost Free Router Table - Fence 6

Almost Free Router Table - Fence 5

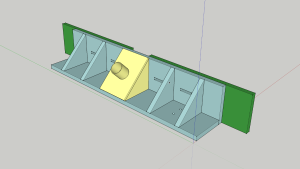

Almost Free Router Table - Fence 3

Almost Free Router Table - Fence 2

Almost Free Router Table - Fence 1

Conclusion

Over all I’m really pleased with this almost free router table. It’s got a couple of downsides, the main one being that it’s too low to the ground, but it’s served me very well. When I get into my new workshop I’ll build a new router table which I plan in being the best the world has ever seen.
