A few years ago someone gave me this woodworking vice as a present. At the time I had no bench to attach it to so it sat in it’s box. When I did finally get a bench and install the vice I discovered that it had a problem with the quick release mechanism. When the vice was set to grip an item less than about 100mm it would start to grip and then suddenly release.

The vice was suddenly releasing because the half nut that engages on the vice screw wasn’t being pushed properly home but the quick release mechanism. Rather than holding it against the thread it was just catching on the edge of the thread and when any tension was applied to the vice it would slip free.

Converting_A_Quick_Release_Vice_00001

There’s not much to the quick release mechanism so it looks like it should be an easy repair but it defeated me. To operate the quick release you squeeze the handle on the front of the vice. This compresses a spring and turns the bar you can see running along the bottom of the vice. The bar then pulls the half nut away from the vice screw and the vice can move freely in and out. When you release the quick release handle the bar pushes the half nut back onto the screw and you can tighten the vice.

I initially tried to tighten the spring as it was quite loose, this improved the action a little but not nearly enough to make it usable. I noticed that the bar had a slight bend to it so I tried to improve that without much success. The bar locates into a castle nut on the back of the front face and I tried to move it to the next position along. This fixed the problem but the quick release became so stiff I couldn’t then disengage it.

After so many failed attempts at repair I decided it was time to just remove the quick release mechanism and replace with with a regular mechanism.

Materials

  • 10mm Aluminium Plate or something similar
  • 6 * M6 cap head screws or bolts
  • 4 * washers for M6 bolts
  • Thread lock

Tools

  • Jigsaw with a metal cutting blade or other metal cutting tool
  • Various drill bits
  • Counter sink or deburring tool
  • Spanners
  • Pliers

Dismantle the Quick Release Mechanism

Remove the quick release mechanism cover with a spanner or socket wrench and then take the bar off. Removing the handle and spring on the front jaw is optional. I was going to leave it in place but I decided to remove it the end.

Converting_A_Quick_Release_Vice_00002

Converting_A_Quick_Release_Vice_00003

Before you go any further it’s worth quickly checking that the half nut isn’t the problem. When I first took my vice apart I found the half nut was full of metal shavings and other dirt presumably from manufacturing.

Converting_A_Quick_Release_Vice_00004

Check the Existing Fittings and Gather Materials

The original quick release cover is held on with two short bolts and it would be best if you could reuse those holes so break out the thread gauge and find out what bolts you’ll need. In my case they were 1mm threads and M6.

Converting_A_Quick_Release_Vice_00005

Now that you know what size and shape the problem is it’s time to get the materials together. You’ll need some short M6 bolts or cap head screws, some washers and a metal plate. In my case I used some 10mm aluminium plate I had hanging around.

Converting_A_Quick_Release_Vice_00006

Cut the Plate to Size

Measure across the base of the vice and then transfer that size to the aluminium plate. Use a jigsaw to cut a section the correct width and then make a second cut to bring it to the right length. The exact length doesn’t matter you just need enough to give you space to insert two new bolt holes on the opposite side of the vice screw.

Converting_A_Quick_Release_Vice_00007

Converting_A_Quick_Release_Vice_00008

Converting_A_Quick_Release_Vice_00009

Converting_A_Quick_Release_Vice_00010

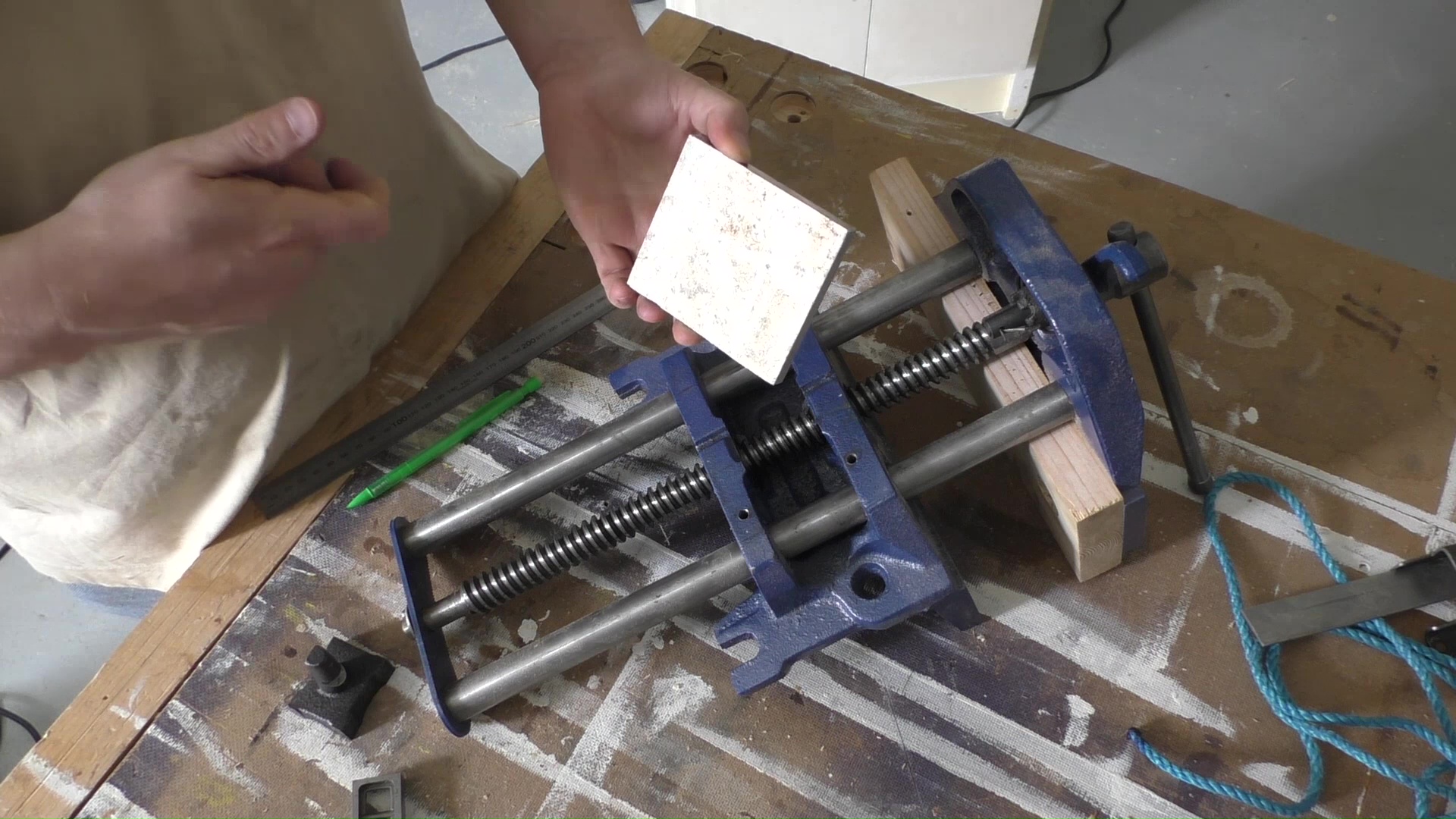

Converting_A_Quick_Release_Vice_00011

Locate the Existing Bolt Holes

Rather than drill new holes in the vice I’d like to try and use the existing holes. It would seem that these are drilled by hand as they are not at all aligned with each other or the casting. Using a square and ruler I positioned punch marks as accurately as I could on the aluminium plate and drilled the holes a little oversized at 7mm.

Converting_A_Quick_Release_Vice_00012

Converting_A_Quick_Release_Vice_00013

Deburr the holes and test fit the plate. So far so good.

Converting_A_Quick_Release_Vice_00014

Converting_A_Quick_Release_Vice_00015

Add the New Bolt Holes

You now need to add two more bolts on the other side of the vice screw to hold the plate firmly down. To be fair it would probably work without these but it’s only a few minutes effort to add them.

Measure the casting and divide the thickness by two then scribe lines on the aluminium. Make punch marks at suitable locations where the new bolts will go into the casting. The exact location doesn’t matter as the new plate will only go on one way because of the old holes.

Converting_A_Quick_Release_Vice_00016

Converting_A_Quick_Release_Vice_00017

Drill the new holes and tap the casting then expand the holes in the new plate so that the bolts will pass through.

Converting_A_Quick_Release_Vice_00018

Converting_A_Quick_Release_Vice_00019

Converting_A_Quick_Release_Vice_00021

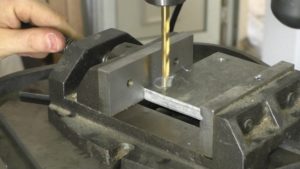

Converting_A_Quick_Release_Vice_00022

Converting_A_Quick_Release_Vice_00023

Locate and Drill for the Half Nut

The plate is now fixed to the vice so it’s time to make a hole for the half nut. Locate the centre and punch it. The catch on the back of the half nut is tapered and so the hole needs to be about 20mm. That is quite a large hole to put in a piece of aluminium plate with only a pillar drill so I drilled it out using successively larger wood bits. An alternative would be to chain drill and then file it to size. I made a sort of improvised bobbin sander from a drill bit, sandpaper and an elastic band to clean up the hole.

Converting_A_Quick_Release_Vice_00024

Converting_A_Quick_Release_Vice_00025

Converting_A_Quick_Release_Vice_00026

Converting_A_Quick_Release_Vice_00027

Converting_A_Quick_Release_Vice_00028

Add Half Nut Pressure Bolts

I had originally planned on pressing the half nut onto the vice screw using a couple of washers but it turned out that the amount of pressure put on the nut needed much finer control that that method could easily provide. The solution was to drill and tap for a couple more M6 bolts either side of the central hole. The bolts would press on the back of the half nut and the pressure could be adjusted accurately.

Mark a centre line and punch a couple of sensible locations. As with the other holes it doesn’t matter exactly where they go. Drill the plate at 5mm and then tap for M6. Put the plate back on the vice and add the pressure bolts. Adjust them so that the nut is tight on the vice thread and then back them off half a turn, use thread lock to hold them in place.

Converting_A_Quick_Release_Vice_00029

Converting_A_Quick_Release_Vice_00030

Converting_A_Quick_Release_Vice_00031

Converting_A_Quick_Release_Vice_00032

Converting_A_Quick_Release_Vice_00033

Converting_A_Quick_Release_Vice_00034

Fit and Test

Finally fit and test the vice. I tested the vice by screwing it in and out over it’s full range of travel a couple of times and then clamping up a mallet. I could happily hit the mallet head with no danger of the vice letting go.

Converting_A_Quick_Release_Vice_00035

Converting_A_Quick_Release_Vice_00036
